TD-OB12014 / TD-OB12012

TD-OB12014 / TD-OB12012

Categories ,

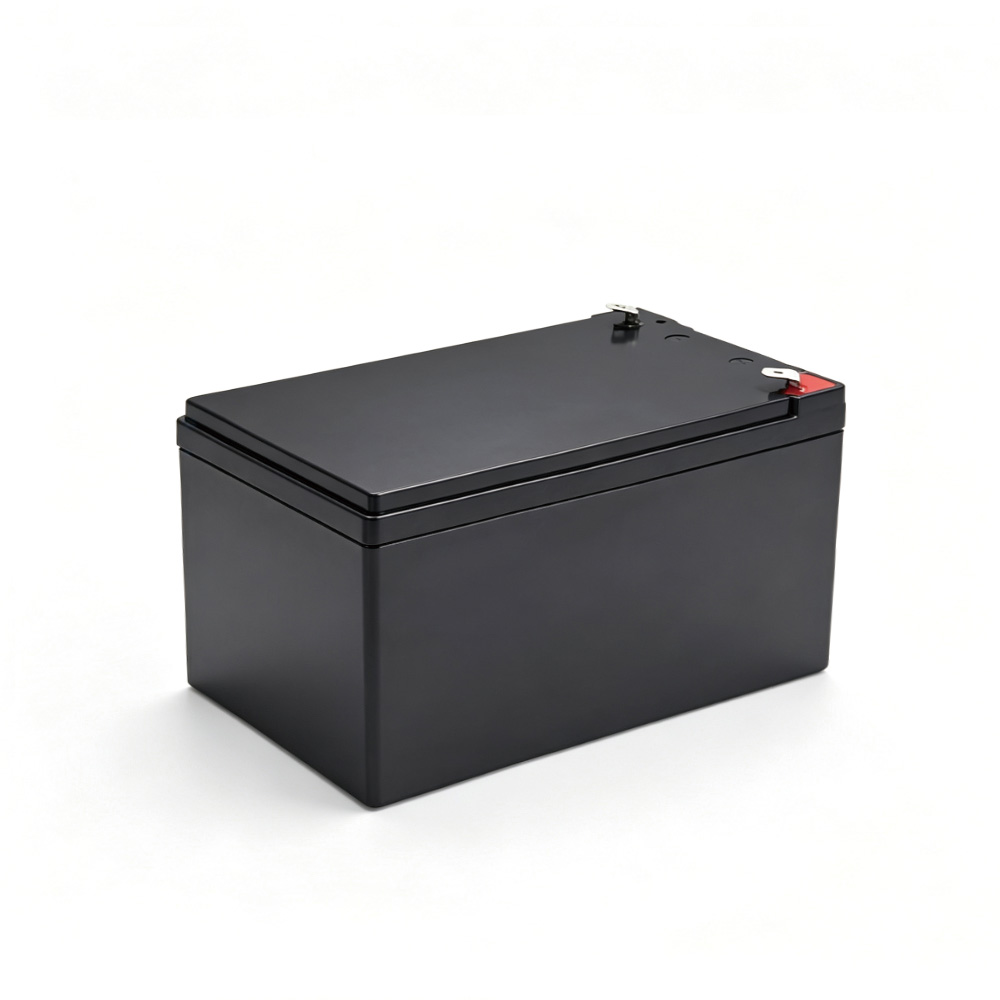

TD-OB12012 / TD-OB12014 is a 12.8V LiFePO4 battery available in 12Ah and 14Ah options (179Wh nominal energy). With 4S1P cell configuration, it supports 14A continuous charge & discharge current and up to 42A peak discharge (10 seconds). Built-in BMS provides overcharge, overdischarge, overcurrent, short-circuit and overtemperature protection. IP64-rated ABS housing, compact dimensions 151×99×96mm, over 3000 cycle life, certified with CE, FCC, UN38.3 and MSDS. Ideal for security systems, solar street lights, UPS backup and small energy storage applications.

Model: TD-OB12012 / TD-OB12014 | 12.8V 12/14Ah LiFePO4 Battery
ParameterSpecification
Nominal Capacity12 / 14 Ah
Nominal Energy179Wh
Nominal Voltage12.8V
Charging Voltage14.6V
Discharge Voltage12.0V
Cell3.2V 14Ah
Cell Series & Parallels4S1P
Charge Current14A
Discharging Current14A
Max. Discharge Current (10S)42A
Operating TemperatureCharge: 10~45°C / Discharge: 5~45°C
Cycle Life≥3000 Times
IP ClassIP64
DimensionsL151 × W99 × H96 mm
CertificateCE / FCC / UN38.3 / MSDS
Shell MaterialABS
ProtectionOvercharge protection, Overdischarge protection, Overcurrent protection, Shortcircuit protection, Overtemperature protection
