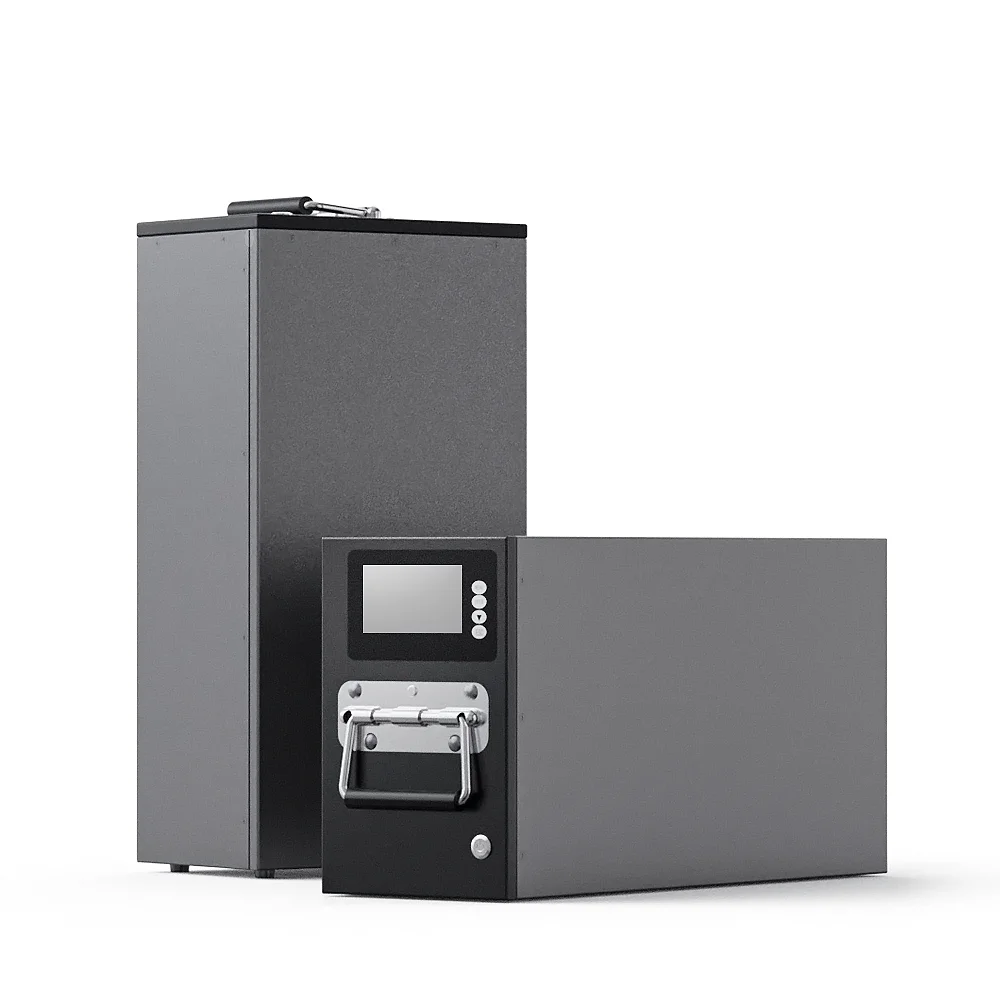

TD-B Semi-Solid Hot Swap LFP Battery
Lithium Iron Phosphate (LFP) batteries feature top-tier safety, ultra-long cycle life and high energy density, serving as the core of modern energy storage systems.
The innovative hot-swappable design greatly optimizes operation and maintenance efficiency:
- Replace battery modules without powering down the system to minimize downtime
- Add or remove battery packs flexibly to expand storage capacity on demand
- Built-in intrinsic safety of LFP chemistry ensures stable, trouble-free operation
Core Advantages
✅ High-Safety Grade Battery
✅ Advanced BMS Safety Protection System
✅ BYD Semi-Solid-State LFP Cell
✅ Over 4,000 Charge & Discharge Cycles
| MODEL | TD-B5120 | TD-B5125 | TD-B5130 | TD-B5138 |
|---|---|---|---|---|
| Energy capacity | 1024Wh | 1280Wh | 1536Wh | 1920Wh |
| Battery capacity | 20Ah | 25Ah | 30Ah | 37.5Ah |
| Nominal voltage | 51.2V | |||
| Operating voltage Range | 24.4~57.6V | |||
| Standard charge current(1C) | 20A | 25A | 30A | 37.5A |
| Max discharge current(2C) | 40A | 50A | 60A | 75A |
| Max discharge current (Peak,≤3S) | 60A | 75A | 90A | 110A |
| Net weight | 11KG | 13KG | 15KG | 16.6KG |
| BMS monitoring parameters | SoC,System voltage,Current,Cell voltage,Cell temperature,PCBA temperature measurement | |||
| Battery type | CobaltFree Lithium Iron Phosphate(LiFePO4) | |||
| Other optional features | LCD Display \ WIFI module \ Bluetooth \ GPS G4 \ Heating module | |||
| Charging Temperature | -10~65 °C | |||
| Discharging Temperature | -20~65 °C | |||
| Storage Temperature | 0~25 °C (≤one month) | |||
| Storage Humidity | 5% to 95% RH (Non-condensing) | |||
| DoD | 90% | |||
| Communication port | RS485 /CAN | |||
| Multi-cluster AXE battery systemin parallel | Max.16 clusters | |||
| cycle life | 4000 times | |||
| Connection port | Hot-swappable stacked energy storage sockets | |||
| IP protection | IP65 | |||
| Dimension(W/D/H) | 212*135*400 (mm) | |||
| Standard Warranty | 5 years | |||
| CERTIFICATION&STANDARDS | ||||
| Coming soon | ||||
