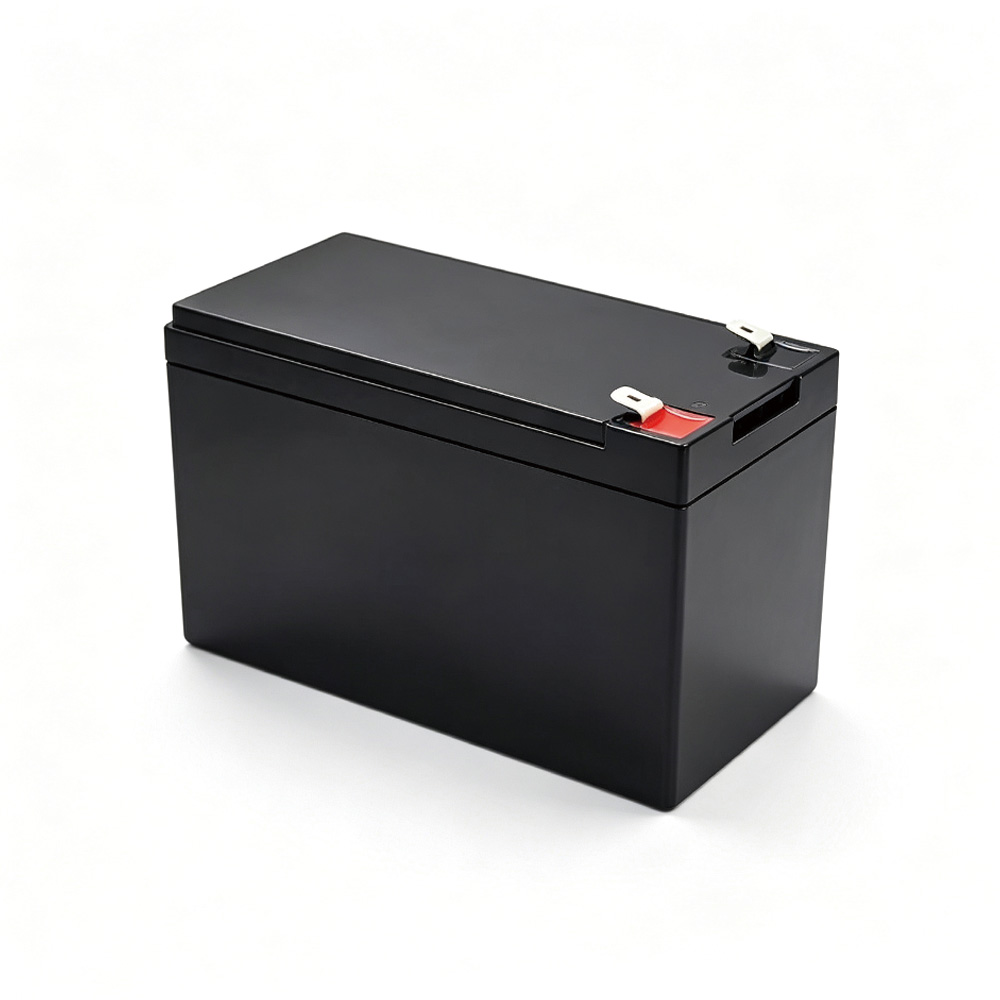

TD-OB12007
TD-OB12007 is a 12.8V 7Ah 90Wh LiFePO4 battery pack with 4S1P configuration. It supports 7A continuous charge & discharge current, 21A 10s max discharge current. Featuring IP64 waterproof ABS housing and built-in BMS with multi safety protections. It delivers over 3000 long service cycles and comes with CE, FCC, UN38.3, MSDS certifications, ideal for small energy storage, backup power and light equipment power supply.
| Model: TD-OB12007 | 12.8V 7Ah LiFePO4 Battery | |
|---|---|
| Parameter | Specification |
| Nominal Capacity | 7 Ah |
| Nominal Energy | 90Wh |
| Nominal Voltage | 12.8V |
| Charging Voltage | 14.6V |
| Discharge Voltage | 12.0V |
| Cell | 3.2V 7.0Ah |
| Cell Series & Parallels | 4S1P |
| Charge Current | 7A |
| Discharging Current | 7A |
| Max. Discharge Current (10S) | 21A |
| Operating Temperature | Charge:10~45°C / Discharge:5~45°C |
| Cycle Life | ≥3000 Cycles |
| IP Class | IP64 |
| Dimensions | L151*W65*H95 mm |
| Certificate | CE/FCC/UN38.3/MSDS |
| Shell Material | ABS |
| Protection | Overcharge, Overdischarge, Overcurrent, Shortcircuit, Overtemperature protection |
