Say Goodbye to Heavy Lifting & Power Outages! PACK-E TD-C (C8) Mobile Power Flatbed: Delivering High-Power Clean Energy Anywhere Outdoors
The Common Dilemma for Outdoor Workers: High Power Demand vs. Heavy Equipment
For outdoor construction, landscaping, utility maintenance, agricultural operations, and event staging crews, field power has long been constrained by two major challenges:
Power-Hungry Heavy-Duty Tools: Professional tools such as welding machines, rotary hammers, cutting saws, and high-pressure washers require thousands of watts of continuous, stable power. Traditional fuel generators are noisy, emit toxic exhaust, and demand frequent maintenance.
Heavy and Hard-to-Transport Storage Units: High-capacity outdoor batteries and conventional industrial storage boxes often weigh dozens or even hundreds of kilograms. Across muddy grass, rough job sites, or stepped obstacles, moving equipment requires multiple workers to carry it manually, leading to low efficiency and risks of injury or equipment damage.
“Insufficient power and immovable equipment” has remained a persistent bottleneck for outdoor productivity.
The Solution: High-Power Power Station + TD-C (C8) Mobile Electric Flatbed

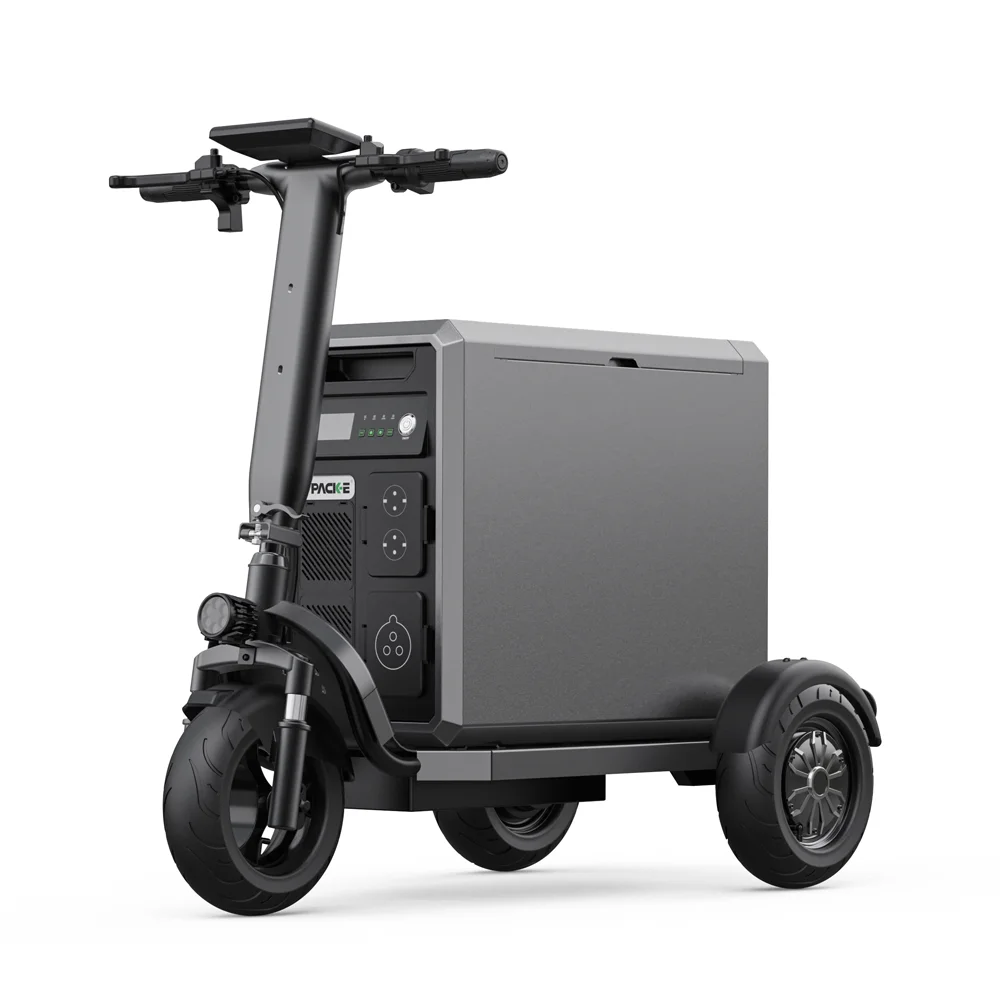

To address complex outdoor job sites, PACK-E® introduces a mobile power solution: integrating high-capacity portable power stations with an electric 3-wheel vehicle to create the TD-C Series (featuring the flagship C8) Mobile Power Flatbed (Mobile-E Platform), enabling lightweight, motorized transport for clean energy and tools.
1. Robust Power Output: Operating Heavy-Duty Equipment
High Pure Sine Wave Output: Powered by the TD-E Series mobile energy storage station, offering 3kW / 4kW / 5kW / 6kW pure sine wave output with a 94% peak efficiency, running high-load equipment such as heavy grinders, chain saws, and water pumps with ease.
Expandable Capacity & Fast Charging: Provides 1,920Wh / 3,840Wh base storage, expandable up to 30,720Wh (30kWh+). Integrated with an MPPT solar charging optimization module (boosting solar charging speed by up to 40%) and supporting hybrid AC/PV fast charging.
13 Versatile Ports: Features 4 AC 230V sockets, USB-A, Type-C PD, 12V DC, and a dedicated 48V XT60 high-power DC output interface to support simultaneous multi-device operation.
2. TD-C (C8) Electric Flatbed: Effortless Riding & No Heavy Manual Lifting
Dedicated 48V XT60 Supply & 120km Range: The TD-C series mobile flatbed connects directly to the TD-E series dedicated 48V XT60 DC output interface to supply power to the vehicle motor controller and electrical systems. On a single full charge, it delivers an extended riding range of up to about 120 kilometers.
Dual-Motor Drive & 3-Speed Control: The flagship C8 is powered by a 1000W brushless hub motor system (dual-motor rear-wheel drive), featuring 3-gear speed control (1st gear <10 km/h, 2nd gear <20 km/h, 3rd gear <30 km/h) to climb and maneuver across rugged terrains under full load.
Heavy Payload (≤200kg) & All-Terrain Agility: Built with a durable Q195 steel frame supporting a payload of up to 200kg (C5: ≤100kg, C6: ≤150kg, C8: ≤200kg). Fitted with 10-inch wheels (front plastic wheel, rear aluminum wheel), responsive disc brakes (braking distance ≤1800mm), and a 40mm obstacle-crossing clearance to conquer asphalt, sand, dirt roads, and up to 4cm steps.
Easy Separation & Foldable Storage: The TD-E series power unit can be easily separated and installed from the vehicle. Once the job is completed, the vehicle chassis can be quickly folded flat (folded height: only 55mm; length: 1000mm; width: 600mm), allowing compact placement in pickup trucks or vans to save space.
3. Trailer Hitch Link: Expanding Mobile Battery Compartments
Attached Trailer Hitch: The flatbed is equipped with a dedicated rear towing hitch. When extended power is required for long shifts, it can tow and attach the TD-S expandable battery compartment, transforming into an all-terrain “mobile emergency power fortress” for multi-day field operations.
TD-C Series Specifications
| MODEL | TD-C5 | TD-C6 | TD-C8 | |
|---|---|---|---|---|
| Vehicle electrical parameters | ||||
| Motor power | 500W | 800W | 1000W | |
| Drive motor | Brushless hub motor | |||
| Drive mode | Rear-wheel drive | |||
| Number of drives | Single motor | Dual motors | ||
| Motor Voltage | 48Vdc | |||
| Speed | 1st gear < 10KM/H, 2nd gear < 20KM/H, 3rd gear < 30KM/H | |||
| Braking method | Disc brakes | |||
| Braking distance | ≤ 1800mm | |||
| Wheels | ||||
| Front wheel | 10″ black Plastic wheels (260mm) | |||
| Rear wheels | 10″ black Aluminum wheels (260mm) | |||
| Frame | ||||
| Frame size | 1000mm * 600mm * 900mm | |||
| Folded width | 600mm | |||
| Folded height | 55mm | |||
| Folded length | 1000mm | |||
| Frame Material | Steel Q195 | |||
| Color | Black (Customizable according to customers) | |||
| Obstacle crossing height | 40mm | |||
| Seat height | 470mm | |||
| Minimum turning radius | ≤ 1000mm | |||
| Load-bearing | ||||
| Load capacity | ≤ 100KG | ≤ 150KG | ≤ 200KG | |
| Weight | ||||
| Product net weight | 21 KG | |||
| Gross weight | 28 KG | |||
| Other features | ||||
| Lights | LED lights | |||
| Display screen | LCD | |||
| Applicable terrain | Cement, asphalt, pavement, flat, dirt pavement, no higher than 4cm steps | |||
| Environment | ||||
| Operating temperature | -10 ~ 40°C | |||
| Storage temperature | -20 ~ 50°C | |||
| Humidity | 5% to 95%RH (Non-condensing) | |||
| Affiliate features | ||||
| Hook | Front traction hook | |||
| Warranty | ||||
| Standard Warranty | 3 years | |||
Typical Target Applications: Power Right Where You Need It
Municipal Engineering & Road Repairs: Drive the C8 directly to maintenance points without laying hundreds of meters of temporary extension cables.
Forestry, Agriculture & Landscaping: Power electric hedge trimmers, chainsaws, and irrigation pumps with zero exhaust emissions and low noise.
Telecom Tower & Utility Inspections: Navigate complex off-road terrains while supplying clean, 10ms seamless UPS-grade power to sensitive diagnostic equipment.
Emergency Rescue & Flood Relief: Rapidly deploy emergency floodlights, cutting tools, and drainage pumps to core disaster areas with single-operator ease.
Empowering Work with Accessible Mobile Energy
The true value of an energy storage system lies not only in how much electricity it stores, but in how effortlessly that electricity can be delivered to where it is needed.
The PACK-E TD-C (C8) Mobile Power Flatbed redefines industrial outdoor energy by combining robust power generation with effortless electric mobility. It serves as a portable workstation that eliminates heavy physical strain while boosting outdoor project efficiency.
